Available Kimray Parts

KIMRAY 2″ PRESSURE CONTROL ECKV

Stem-Guided Non-Balanced High Pressure Control Valves can be used as Dump Valves or Pressure Regulators. Our Stem-Guided Control Valves have smaller trim sizes (available in 1″ and 2″ end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. “Stem-guided” refers to the stem itself guiding the trim into its seat.

$1025 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2 PRESSURE REGULATOR AAB

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

$485.55 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ PRESSURE CONTROL ECUV

The Stem-Guided High Pressure Control Valve is a non-balanced valves that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift or flowback applications.

The Stem-Guided Control Valve has smaller trim sizes (available in 1″ and 2″ end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. “Stem-guided” refers to the stem itself guiding the trim into its seat.

It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.

$1075 Per Unit



Call to Purchase

785.625.9295

KIMRAY HAMMER TRUNNION CCT

Trunnion assemblies connect to the vessel and sense the liquid level, moving a lever up and down, linking to and operating a lever operated dump valve.

A float and float arm must also be ordered separately to complete the trunnion assembly.

$429.05 Per Unit



Call to Purchase

785.625.9295

KIMRAY REGULATOR 312-FGT-BP AAE

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

$713.70 Per Unit



Call to Purchase

785.625.9295

KIMRAY 3 BACK PRESSURE VALVE ENS

Controls upstream pressure in liquid or gas systems such as heater treaters, free water knockouts, and vent lines on separators.

$981.63 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ PRESSURE REGULATOR ABW

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

$677.43 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ Pressure Regulator AAS

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

$750.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ PRESSURE CONTROL ECMV

The Stem-Guided High Pressure Control Valve is a non-balanced valves that can be used as a dump valve, pressure regulator, suction controller, recirculation valve, as well as in plunger lift or flowback applications.

The Stem-Guided Control Valve has smaller trim sizes (available in 1″ and 2″ end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. “Stem-guided” refers to the stem itself guiding the trim into its seat.

It can be fitted with optional electric actuation or operated with compressed air for zero-emission requirements.

$1025.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 3 DUMP VALVE CAT

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

$810.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 4 CONTROL VALVE EQA

Cage-Guided Balanced High Pressure Control Valves can be used as Dump Valves or Pressure Regulators. Our Cage-Guided Control Valves have larger trim sizes (available in 2″ thru 10″ end connections) for larger valve coefficients (Cv) compared to the Stem-Guided series.

$6,150.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 3 MOTOR CONTROL VALVE EZO

Cage-Guided Balanced High Pressure Control Valves can be used as Dump Valves or Pressure Regulators. Our Cage-Guided Control Valves have larger trim sizes (available in 2″ thru 10″ end connections) for larger valve coefficients (Cv) compared to the Stem-Guided series.

$3900.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY FLOAT OPERATE LVL CNTRL CEC2

Can be used as either a High Level or Low Level switch in a pressurized vessel, sending an electric output. Electric output can be used to activate alarms, solenoid valves or other electrically switched devices.

$460.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY T-12 THERMOSTAT HAA

The Temperature Thermostat features a modulated (throttling) signal output and a maximum set point of between 400F and 750F. Can be direct or indirect signal output based on how it is installed.

$149.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ LEVEL CONTROL LH CML

Field-selectable between snap and throttle level control (span of levels vs holding consistent level). Also, field reversible between direct and indirect output signal. These controllers are great for interfacing (sensing and holding a level between two different specific gravity liquids in a tank). Several different displacer options available to handle an array of different possible conditions: small differential liquid specific gravities, high temperature, corrosion, large span, small tank diameters, and small access openings.

$750.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY FLOAT LEVEL CONTROL CEC1

Electric Level Switches are a zero-emission switch that can be used as either a high level or low level switch in a pressurized vessel, sending an electric output.

Electric output can be used to activate alarms, solenoid valves or other electrically switched devices.

$415.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ MECH DUMP VALVE CHA

In the Lever-Operated Diaphragm Balanced Liquid Dump Valve, the upstream and downstream pressures used to balance the forces on the trim are separated by a diaphragm.

$325.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ BACK PRESSURE REG AARV

Control pressure upstream of the valve by adjusting the set point to the desired max upstream pressure. Used on separators, heater treaters, compressor stations, and gas gathering systems.

$736.79 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ PRESSURE CONTROL EYC

With the Pneumatic Piston-Balanced Liquid Dump Valve, upstream vs downstream pressure is balanced via communication of the process fluid above and below the balancing piston in order to eliminate imbalance of opening/closing forces due to pressure differential. Designed for liquid systems, and available in pressure-opening (normally closed) or pressure-closing (normally open) configurations.

$669.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 3″ PRESSURE CONTROL EYI

With the Pneumatic Piston-Balanced Liquid Dump Valve, upstream vs downstream pressure is balanced via communication of the process fluid above and below the balancing piston in order to eliminate imbalance of opening/closing forces due to pressure differential. Designed for liquid systems, and available in pressure-opening (normally closed) or pressure-closing (normally open) configurations.

$1,190.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2″ LIQUID LEVEL CONTROL CMME

The Electric Gen II is a zero-emission liquid level controller with an adjustable snap span. With a wide variety of displacers available, the Electric Gen II will work in most environments.

$2556.52 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2 CONTROL VALVE ECPCBV

Stem-Guided Non-Balanced High Pressure Control Valves can be used as Dump Valves or Pressure Regulators. Our Stem-Guided Control Valves have smaller trim sizes (available in 1″ and 2″ end connections) for smaller valve coefficients (Cv) compared to the Cage-Guided series. “Stem-guided” refers to the stem itself guiding the trim into its seat.

$1349.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 3″ BACK PRESSURE VALVE AAU

Back Pressure Regulators control pressure upstream of your production vessel. They are comonly used on separators, treaters, compressors, and gas gathering systems.

These valves are classified as intermittent venting (non-bleed), and meet most producer’s emissions standards. Some models are available in a non-vent version.

Utilizes process gas to operate integrated pilot. Gas must be clean and dry.

$1028.00 Per Unit



Call to Purchase

785.625.9295

KIMRAY 2 PRESSURE REGULATOR AMN6

This product has been discontinued on the Kimray websit but we still have several in stock.

$435.00 Per Unit



Call to Purchase

785.625.9295

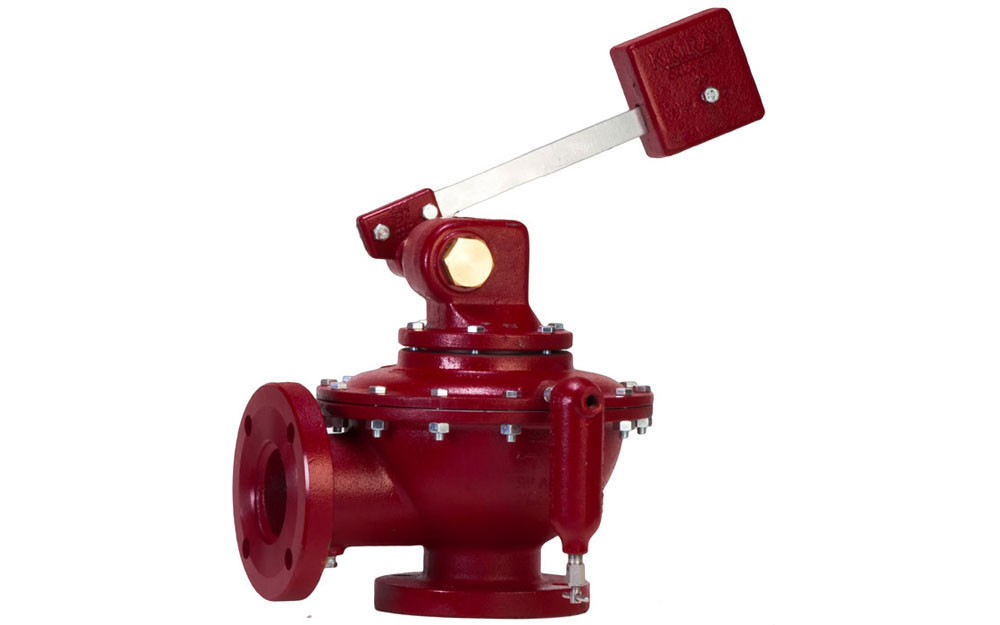

KIMRAY 3″ TREATER DUMP VLV DACDS

Weight-Operated Dump Valves are ideal for zero-emissions level control in heater treaters and saltwater disposal systems.

This valve actuates based on the hydrostatic pressure generated from the column of liquid in the discharge piping from the vessel. The height of water column can be field adjusted by moving the weight on the arm in or out and ranges from 2 ft to 4 feet, with options up to 12 feet.

$1040.00 Per Unit



Call to Purchase

785.625.9295
